E1 or T1 - RJ45 - Parallel Monitoring

Directions of signal: T: Transmitted by User (or SS7-SP, V5-AN) R: Received by User (or SS7-SP, V5-AN)

The profile includes the following options of PRI interface:

• Extremity connection mode
• High impedance inputs

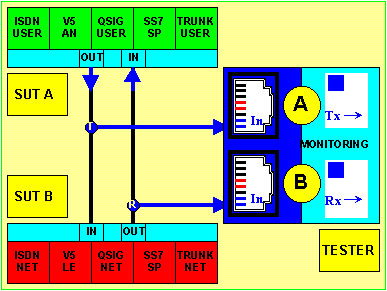

This connection type enables observation on an E1 or T1 interface without cutting off the link.

The following limitations are to be taken into account:

• the cable must be less than 0.5 meter long.
• the signal level must be greater than -6dB.
