Clarinet-TTCN ISDN NI-2 ETS

Standard features

ISDN ETS products Clarinet-System configuration Packaging Ordering information

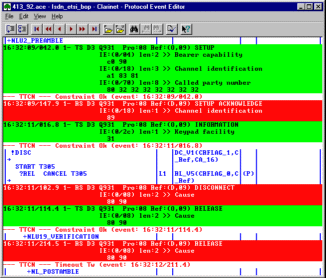

Click to enlarge

ISDN NI-2 ETS products

Standard reference

Clarinet ETS NIUF413-92 BRI User side

• Protocol: ITU-T Q931 standards and Bellcore SR-NWT-002343 specifications defines protocol for ISDN Equipment
• IUT: ISDN BRI User Equipment for Network Layer
• ATS:  NIUF standard NIUF413-92

Clarinet ETS NIUF421-93 PRI User side

• Protocol: ITU-T Q931 standards and Bellcore SR-NWT-002343 specifications defines protocol for ISDN Equipment
• IUT: ISDN  PRI User Equipment for Network Layer
• ATS:  NIUF standard NIUF421-93

Clarinet ETS NI-1268 PRI Network side

• Protocol: ITU-T Q931 standards and Bellcore TR-NWT-001268 specifications defines protocol for ISDN Switching Systems
• IUT: ISDN  PRI Network Equipment for Network Layer
• ATS:  Based on TR-NWT-001268 specifications

Description

• These ETS result from compilation of the ATS (Abstract Test Suites) source included in ATS in TTCN-MP (IS-format) by the CLARINET-TTCN compiler.
• The  ETS packages includes the executable files of ETS and the templates of Clarinet file for a quick operation (Profiles, filters, Testcases list, PICS/PIXIT).

Clarinet-System configuration

Host specifications

• USB interface + Windows 98 or Windows 2000
• SCSI2  interface + Windows 95 or Windows NT 4.0

Clarinet specification

• To run an ETS, only the standard Clarinet RUN-TIME package is required
• The Clarinet RUN-TIME version should be at least the 8.3 version
• The Clarinet-profiles are used in User-Program behaviour

Interface Under Test Specification

• The ETS can be run on different type of interfaces supported by CLARINET:
  • E1, T1 for PRI ETS
  • U, S-T for BRI ETS

Manager options

• The features which generate and display a full TTCN-GR trace are included in the standard Clarinet RUN-TIME
• An access from the Clarinet profile-editor allows to manage directly both configuration files:
  • TestCases list
  • PICS/PIXIT parameters.

Filter options

• The filter includes TTCN functions to select the TTCN-GR trace events
• programmable color attribute by type of events (Test-step, TestCase...)

Packaging

ETS

• All the ETS are independent software packages delivered on the single CD-ROM Clarinet ETS
• The running of the software is controlled by the Clarinet security-key connected on parallel port
• The ETS installation and execution are subject to the general conditions of the ACACIA software use license.

ATS

• The ATS reference (mp file name) and ATS modifications are provided by Acacia in each package.
• The TTCN-GR  documentation corresponding to the NIUF ATS is available from standard organization.

Ordering information

---
