Clarinet-TTCN Frame Relay ETS

Standard features

Frame Relay ETS products Clarinet-System configuration Packaging Ordering information

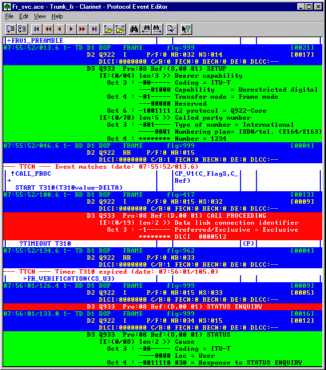

Click to enlarge

Frame Relay ETS products

Standard reference

• Protocol: ITU Q933, ANSI T1 617 and Frame Relay Forum FRF4 standard define  the service of Frame Relay Permanent Virtual Circuits protocol.
• IUT: PVC service for the Frame Relay Equipment.
• ATS:  The document " NIUF 424-93 Frame Relay Conformation Test Suite for ANSI T1.617 Annex D-Permanent Virtual Connection (PVC) Part 3: Conformance Test Suite (ICOT-93-03; ACTFR-92-026.06) "includes the ATS graphical format dated the 27th September 1993.

• Protocol: ITU Q933, ANSI T1 617 and Frame Relay Forum FRF4 standard define  the service of Frame Relay Permanent Virtual Circuits protocol.
• IUT: SVC service for the Frame Relay Equipment.
• ATS:  The document " FRF.4.1A Frame Relay Conformance Test Suite version 1.0" includes the ATS graphical format dated the 1st September 1995.

Description

• These ETS result from compilation of the ATS (Abstract Test Suites) source included in ATS in TTCN-MP (IS-format) by the CLARINET-TTCN compiler.
• The ETS packages includes the executable files of ETS and the templates of Clarinet file for a quick operation (Profiles, filters, Testcases list, PICS/PIXIT).

Clarinet-System configuration

Host specifications

• USB interface + Windows 98 or Windows 2000
• SCSI2  interface + Windows 95 or Windows NT 4.0

Clarinet specification

• To run an ETS, only the standard Clarinet RUN-TIME package is required
• The Clarinet RUN-TIME version should be at least the 8.3 version
• The Clarinet-profiles are used in User-Program behaviour

Interface Under Test Specification

• The ETS can be run on different type of interfaces supported by CLARINET:
  • Trunk interfaces: T1, E1
  • Vseries: V24, V35, V11, V36
  • ATM STS-3C/STM1
  • ATM E3

Manager options

• The features which generate and display a full TTCN-GR trace are included in the standard Clarinet RUN-TIME
• An access from the Clarinet profile-editor allows to manage directly both configuration files:
  • TestCases list
  • PICS/PIXIT parameters.

Filter options

• The filter includes TTCN functions to select the TTCN-GR trace events
• programmable color attribute by type of events (Test-step, TestCase...)

Packaging

ETS

• All the ETS are independent software packages delivered on the single CD-ROM Clarinet ETS
• The running of the software is controlled by the Clarinet security-key connected on parallel port
• The ETS installation and execution are subject to the general conditions of the ACACIA software use license.

ATS

• The ATS reference (mp file name) and ATS modifications are provided by Acacia in each package.
• The TTCN-GR test documentation corresponding to the ATS is available from standard organization.

Ordering information

---
