Clarinet-TTCN ATM  ETS

Standard Features

ATM ETS Products

Standard References

Clarinet ETS AF-TEST 0041

• Protocol:  UNI 3.1 ATM Layer Conformance Test Suite for End Systems
• IUT: ATM Equipment UNI 3.0
• ATS: ATM-FORUM standards af-test-0060.000 covers the test of UNI 3.0 ATM Layer of End Systems

Clarinet ETS AF-TEST 0060

• Protocol:  UNI 3.1 ATM Layer Conformance Test Suite for End Systems
• IUT: ATM Equipment UNI 3.1
• ATS: ATM-FORUM standards af-test-0060.000 covers the test of UNI 3.1 ATM Layer of End Systems

Clarinet ETS AF-01-023 - SSCOP

• Protocol:  ITU Q2110  and ATM-FORUM standards define protocol for Service Specific Connection Oriented Protocol (SSCOP) residing in the Service Specific Convergence Sublayer (SSCS) of the ATM Adaptation Layer (AAL)
• IUT: ATM Equipment UNI 3.1
• ATS: ATM-FORUM standards AF-SSCOP-01-023 covers the test of SSCOP protocol. The ATS defines the tests of protocol in accordance with  SSCOP protocol specifications: ITU Q2110 and ETSI 300 436.

Clarinet ETS  436-4 - SSCOP

• Protocol:  ETSI 300 436 and ATM-FORUM standards define protocol for Service Specific Connection Oriented Protocol (SSCOP) residing in the Service Specific Convergence Sublayer (SSCS) of the ATM Adaptation Layer (AAL)
• IUT: ATM Equipment UNI 3.1
• ATS: ETSI standards 300 436-4 covers the test of SSCOP protocol. The ATS defines the tests of protocol in accordance with  SSCOP protocol specifications: ITU Q2110 and ETSI 300 436.

Clarinet ETS  AF-0090 - UNI 3.1 Basic Call Network side

• Protocol:  ATM-FORUM and ITU standards define protocol for ATM User Network Interface Specifications for basic call/connection control
• IUT: ATM Intermediate Systems (Network Side) to the User-Network interface (UNI) for basic call/connection control
• ATS: ATM Forum standards ATM_S_NET V 1.1.0 produced by the ATM forum covers the test of UNI 3.1 protocol (Network Side ). The ATS defines the tests of protocol in accordance with  the ATM User Network Interface Specifications Version 3.1 and with the ITU-T recommendation Q2931 broadband integrated services digital network (B-ISDN).

Clarinet ETS  300 771-6 - UNI 3.1 Point to Multipoint

• Protocol:  ATM-FORUM and ITU standards define protocol for ATM User Network Interface Specifications for point to multipoint call/connection control.
• IUT: ATM Intermediate Systems (Network Side) User-Network Interface (UNI) layer 3 specification for point to multipoint call/connection control.
• ATS: ETSI standards ETS 300 771-6 produced by the ETSI covers the test of UNI 3.1 protocol (Network Side ). The ATS defines the tests of protocol in accordance with  the ATM User Network Interface Specifications Version 3.1 and with the ITU-T recommendation Q2971 broadband integrated services digital network (B-ISDN).

Description

• ETS results from a compilation of the ATS source in TTCN-MP (IS-format) by the CLARINET-TTCN compiler.
• The package includes the executable files of ETS and the templates of Clarinet file for a quick operation (Profiles, filters, Test cases list, PICS/PIXIT)

Clarinet-System Configuration

Host Specifications

• USB interface + Windows 98 or Windows 2000
• SCSI2  interface + Windows 95 or Windows NT 4.0

Clarinet Specification

• To run an ETS, only the standard Clarinet RUN-TIME package is required
• The Clarinet RUN-TIME version should be at least the 8.3 version
• The Clarinet-profiles are used in User-Program behavior

Interface Under Test Specification

• The ETS can be run on different types of interfaces supported by CLARINET:
  • ATM STS-3C/STM1
  • ATM E3
• One single interface is managed by the ETS

Manager Options

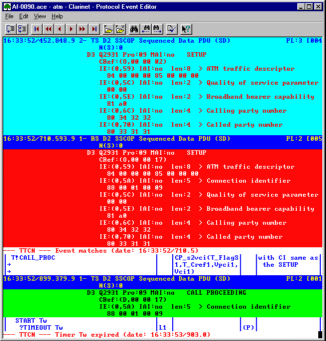

• The features which generate and display a full TTCN-GR trace are included in the standard Clarinet RUN-TIME
• An access from the Clarinet profile-editor allows to manage directly both configuration files:
  • Test Cases list
  • PICS/PIXIT parameters.

Filter Options

• The filter includes TTCN functions to select the TTCN-GR trace events
• Programmable color attribute by type of events (Test-step, Test Case...)

Packaging

ETS

• All ETS are independent software packages delivered on the single CD-ROM Clarinet ETS
• The running of the software is controlled by the Clarinet security-key connected on parallel port
• The ETS installation and execution are subject to the general conditions of the ACACIA software use license.

ATS

• The ATS reference (mp file name) and ATS modifications are provided by Acacia in each package.
• The TTCN-GR test documentation corresponding to the ATS is available from standard organization.

Ordering information

---
