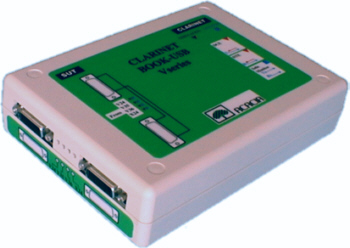

Clarinet-Book USB Vseries
Standard features
Features
- One Interface Under Test selected by
software
- V24/V28
- V35
- V36/RS449
- X24/V11
- PH, SL monitor links (64 kbit/s), DL (8 Mbits/s)
- Signaling Link emulation: Asynchronous,
Synchronous HDLC.
- Data Link emulation: BOP, Asynchronous, BERT
Two SUB-HD60 sockets on the side of the Clarinet-Books allow to connect different
cable-adapters for V24, V35, V36, X24 interfaces.
V24/V28
- cable SUB-HD60 to SUB-HD-25-pin female connector
- serial or parallel connection.
- Monitor / DTE emulation / DCE emulation
- Rate up to 38400 bits/s (Asynchronous),
up to 64 kbits/s (Synchronous).
- clock configuration: 114/115 or 113/115
V35
- cable SUB-HD60 to 34-pin female connector
- serial connection.
- Monitor / DTE emulation / DCE emulation
- Rate up 1920 kbits/s.
- Clock configuration: 114/115 or 113/115
V36/RS449
- cable SUB-HD60 to SUBD-37-pin female connector
- serial connection.
- Monitor / DTE emulation / DCE emulation
- Rate up 1920 kbits/s.
- Clock configuration: 114/115 or 113/115
X24/V11
- cable SUB-HD60-SUBD-15-pin female connector
- serial connection.
- Monitor / DTE emulation / DCE emulation
- Rate up 8 Mbits/s.
- Clock configuration: one clock circuit
(S) or two clock circuits (S/X).
USB
Power
- Power-feeded by USB power
- Internal Batteries charged by AC/DC Adapter
- External DC/AC adapter: 100 to 250 volts (European/UK/US plugs
options)
Host computer
- Windows™ 98 or Windows™ 2000
- PC Desktop & Notebook with USB Port or USB-HUB
- Clarinet Software Run-time installed
Unit Package
- Size:187 x 136 x 45mm.
- Weight: 0.550 kg
Regulation
- Tested and found to comply with the limits for a Class A digital
device, pursuant to Part 15 of the FCC rules.
- CE marking implies conformity to:
- EN 55022/1994 Class A- Radio Frequency Interference
- EN50082-1/1992 Electomagnetic Immunity
- EN60950 Product safety
Shipment
- Plastic case including:
- Clarinet-Book
- External AC/DC Adapter for batteries charging
- Free set of accessories:
- set of two V24 cables (PN# 5311)
Part Number
|
Product Designation
|
2004
|
Clarinet-Book USB Vseries |
|
|
|
|
Accessories Designation
|
5311
|
Set of two V24 International cables
for PN# 2004 |
5312
|
Set of two V35 International cables
(pin 1.6) for PN# 2004 |
5313
|
Set of two V11/X24 cables (X
clock) for PN# 2004 |
5314
|
Set of two V36 cables for
PN# 2004 |
5315
|
Set of two V11/X24 cables (X/S
clocks) for PN# 2004 |
5316
|
Set of two V35 France cables
(pin 1) for PN# 2004 |
|
