Clarinet-Book USB Ethernet 10/100

Standard features

Functions supported
Connection to Interface under Test
System and power connection
Packaging & regulation
Ordering information


Functions Supported

Features

  • One Interface Ethernet 10Mbits / 100Mbits  selected by software
    • 1 x 100BaseTX
    • 1 x 10BaseT
    • 1 x MAU
    • 1 x 10Base2
  • Data Link management
  • LAN applications
  • IP, H323 Data Protocols.

Connection to Interface Under Test

100Base TX

  • One RJ 45 connector
  • Monitor / station emulation

10Base T

  • One RJ 45 connector
  • Monitor / station emulation

MAU

  • One SUBD-15-pin female socket
  • Monitor / station emulation

10Base 2

  • AUI-10Base2 Transceiver plugged to the SUBD-15-pin female socket
  • Monitor / station emulation

System and Power Connection

USB

  • 1 USB connector (type B)

Power

  • Power fed by USB power
  • Internal Batteries charged by AC/DC Adapter
  • External DC/AC adapter: 100 to 250 volts (European/UK/US plugs options)
  • 10 Base2 Transceiver needs External AC/DC to be connected

Host computer

  • Windows™ 98 or Windows™ 2000
  • PC Desktop & Notebook  with USB Port or USB-HUB
  • Clarinet Software Run-time installed

Packaging & Regulation

Unit Package

  • Size:187 x 136 x 45mm.
  • Weight: 0.550 kg

Regulation

  • Tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC rules.
  • CE marking implies conformity to:
    • EN 55022/1994 Class A- Radio Frequency Interference
    • EN50082-1/1992 Electromagnetic Immunity
    • EN60950 Product safety

Shipment

  • Plastic case including:
    • Clarinet-Book
    • External AC/DC Adapter
    • 10B2 / AUI external Transceiver

Ordering Information

Part Number

Product Designation

2003

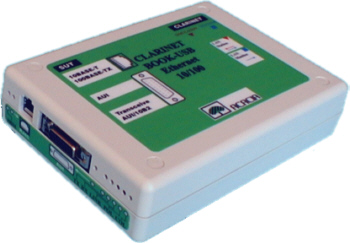

Clarinet-Book USB Ethernet 10/100
